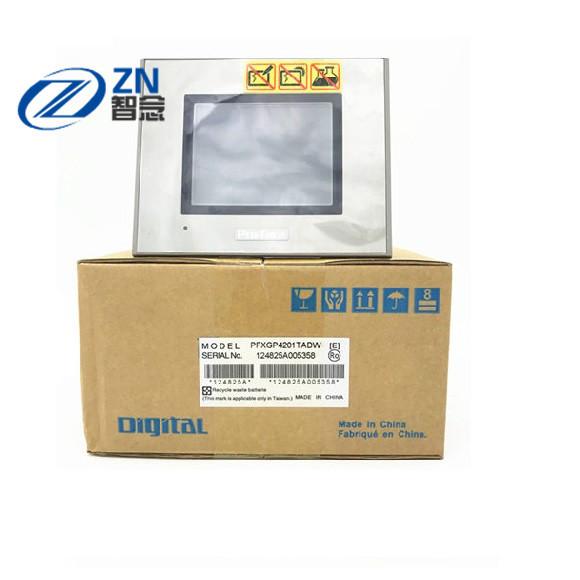

PFXGP4201TADW Programmable Display GP4000W Touch Screen HMI

  • 1
  • 2

Brand Name : Proface

Model Number : PFXGP4201TADW

Place of Origin : China

MOQ : 1/pc

Price : $150-$2000

Payment Terms : T/T, western union

Supply Ability : 10pc/per week

Delivery Time : 3-5working days

Packaging Details : Carton packaging

Brand : Proface

Condition : new and Original

Design : Design in Japan

Display Type : TFT Color LCD

Display Size : 3.5"

Contact Now

PFXGP4201TADW Programmable Display GP4000W Touch Screen HMI

Functional Specifications

Display Type
TFT Color LCD
Display Size
3.5"
Resolution
320 x 240 pixels (QVGA)
Effective Display Area
W70.56 x H52.92 mm [W2.78 x H2.08 in.]
Display Colors
65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight
White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control
8 Levels (Adjusted with the touch panel or the software)
Backlight Service Life
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows
8 x 8 dots
40 char. x 30 rows
Program Area
FLASH EPROM 132 KB (Equivalent to 15,000 steps)*1
Variable Area
None
Application Memory
FLASH EPROM 8 MB (including a logic program area)
Data Backup
SRAM 128 KB (Rechargeable Lithium battery for backup memory)
Clock Accuracy
±65 sec/month (deviation at room temperature and power is OFF)*2
Touch Panel Type
Resistive Film (analog)
Touch Panel Resolution
1,024 x 1,024
Touch Panel Service Life
1,000,000 times or more
Serial (COM1)
RS-232C Asynchronous Transmission, Data Length: 7 or 8 bits, Parity: none, Even or Odd, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)
RS-422/485 Asynchronous Transmission, Data Length: 7 or 8 bits, Parity: none, Even or Odd, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (plug)
USB (TYPE-A)
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD Card
None

PFXGP4201TADW Programmable Display GP4000W Touch Screen HMI
