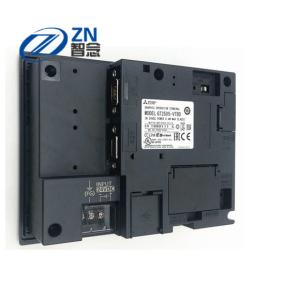

GT2505-VTBD Mitsubishi GOT2000 SERIES Display Fast Delivery
01 GOT Mobile function
Via GOT at the production site, connected devices can be monitored from multiple information devices (clients) such as computers and tablets in a remote location. You can check the production in a timely manner and take necessary actions immediately. Just display the production status on a large monitor, and you can easily implement an ANDON system.
A separate license (GT25-WEBSKEY) is required.
A browser (Google Chrome or Safari) is required on the client.
Up to five clients can connect to one GOT at the same time.
An access point is required separately because the wireless LAN communication unit cannot be used with GT2505.
02 Drive recorder
GOT can be used to display the screen equivalent to the drive recorder of MR Configurator2. Easily check the servo data (motor current, position command, etc.) on GOT without using a personal computer.
03 System launcher
System launcher (servo network)
A graphical configuration diagram of programmable controller and servo systems indicates module statuses.
04 Sequence program monitor (Ladder)/(iQ-R ladder)
When an error occurs, GOT can monitor and edit a sequence program in a controller in the ladder format, and also can change
current values of devices. There is no need for a personal computer.
05 Operation log
GOT records all the operations performed by operators. Checking the recorded operation history helps you to identify and analyze
the cause of the error occurred due to improper operations, leading to making improvements, preventing reoccurrence, and enhancing traceability.
| TYPE | GT25 MODEL |
| POWER SUPPLY (V) | 24 |
| CURRENT TYPE | DC |
| DISPLAY | TFT |
| DISPLAY COLOUR | 65536 |
| DISPLAY SIZE (INCH) | 5,7 |
| RESOLUTION (PIXELS) | 640X480 |
| INTERNAL MEMORY CAPACITY (MB) | 32 |
| MEMORY CARD SLOT | SD |
| USB | 2 |
| ETHERNET PORT | 1 |
| RS-232 | 1 |
| RS-422/485 | 1 |
| NETWORK OPTIONS | MODBUS, ETHERNET, CCLINK |
| PROTECTION CLASS | IP67 |
