NX-OD4121 Original PLC Digital Output Unit For PLC Controller Module Industrial Controls

Name: NXOD4121 Original PLC Digital Output Unit For PLC Controller Module Industrial Controls
Brand: Omron
Price: 50 USD

China NX-OD4121 Original PLC Digital Output Unit For PLC Controller Module Industrial Controls factory

Brand Name : Omron

Model Number : NX-OD4121

Place of Origin : China

MOQ : 1/pc

Price : $50-500

Payment Terms : T/T, western union, D/P, alibaba

Supply Ability : 100pc/per week

Delivery Time : 1-3 working days

Packaging Details : Carton packaging or wooden packaging

Brand : Omron

Condition : 100% new and original

Lead time : 2-3 working days

MOQ : 1

Warranty : 12 months

Shipping Term : DHL/TNT/UPS/FEDEX Etc.

Series : NX

Type : Omron Programmable Logic Controllers PLC

Contact Now

New and Original PLC Digital Output Unit for NX-OD4121 PLC Controller Module Industrial Controls

Descriptions
Omron NX Family of Series — NX-ID/IA/OD/OC/MD | Modular Digital I/O Unit:

Series Features:

High-speed I/O refreshing using the EtherCAT coupler
I/O refreshing synchronized with the control cycle of the controller (synchronous refreshing)
Time-stamp inputs and outputs anywhere in the EtherCAT network can be independently controlled with sub-microsecond accuracy
Detachable terminals for easy maintenance
Screwless Push-In Plus terminal block or MIL/Fujitsu connector speeds up installation
Compact with a width of 12 mm per unit (connector type: 30 mm)
4, 8, 16 or 32 inputs for flexible I/O configuration (NX-ID/IA)
2, 4, 8, 16 or 32 outputs for flexible I/O configuration (NX-OD/OC)
Connect to the CJ PLC using the EtherNet/IPTM bus coupler
EN ISO13849-1 (PLe/Safety Category 4), IEC 61508 (SIL3) certified
4 or 8 points per Safety Input Unit. 2 or 4 points per Safety Output Unit
The Safety Units can be freely allocated in any combination with standard NX I/O
Small system size allows space savings in the cabinet.
Direct Diagnostic with LED's.
Easy wiring and easy to maintain

Specifications

I/O system	NX I/O Bus
Type of module	Digital I/O
Number of digital inputs	0
Digital input type	None
OFF/ON delay	0.1-0.8 ms
Number of digital outputs	8
Digital output type	NPN
Permitted voltage at output	10.2-28.8 V
Output current	0.5 A
Short-circuit protected outputs
Connection method	2-wire
Signal processing	Free running, Standard speed, Synchronous
IO link master
I/O connection type	Push-in
Number of I/O connectors	1
Detachable I/O connector
Suitable for safety functions
SIL according to IEC 61508	None
Communication port(s)	None
Number of IOV (V+) terminals	8
Number of IOG (V-) terminals	0
Number of COM terminals	0
Degree of protection (IP)	IP20
Height	100 mm
Width	12 mm
Depth	71 mm
Weight	95 g

Accessories

NX-AUX02	Terminal block coding pins for 10x NX I/O units (terminal block: 30 pins, unit: 30 pins)
NX-PC0010	Unidade NX - Ligações 16xIOV 5-24VDC

Spare parts

NX-TBA162

RNX I/O power connection unit, IOG, 5-24 V DC input, 16 terminals, screwless push-in connector, 12mm wide

Product Tags:

Original PLC Digital Output Unit

Omron PLC Controller Module

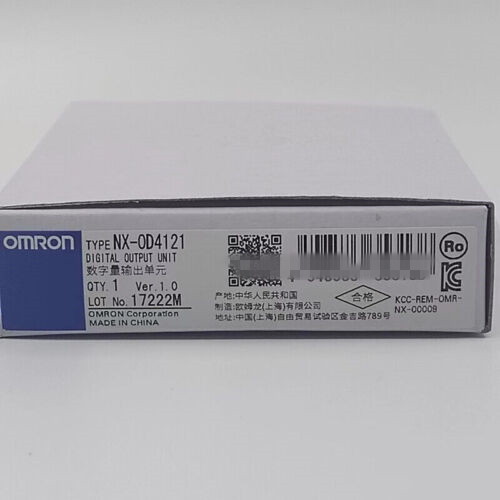

NX-OD4121 Original PLC Digital Output Unit For PLC Controller Module Industrial Controls Images
