NX-OD5121 Omron I/O Modules NX Series Transistor Output Unit NPN To 24VDC

Name: NXOD5121 Omron IO Modules NX Series Transistor Output Unit NPN To 24VDC
Brand: Omron
Price: 50 USD

China NX-OD5121 Omron I/O Modules NX Series Transistor Output Unit NPN To 24VDC factory

Brand Name : Omron

Model Number : NX-OD5121

Place of Origin : China

MOQ : 1/pc

Price : $50-500

Payment Terms : T/T, western union, D/P, alibaba

Supply Ability : 10pc/per week

Delivery Time : 3-5 working days

Packaging Details : Carton packaging or wooden packaging

Brand : Omron

Condition : 100% new and original

Lead time : 3-5 working days

MOQ : 1

Warranty : 12 months

Shipping Term : DHL/TNT/UPS/FEDEX Etc.

Series : NX

Supply Voltage : 12-24 VDC

Contact Now

NX-OD5121 Omron I/O Modules NX Series,Transistor Output Unit,NPN To 24VDC

Overview

Omron NX Family of Series — NX-ID/IA/OD/OC/MD | Modular Digital I/O Unit:

The NX Series is a range of modular designed units that integrate standard I/O and safety and connect to the EtherNet/IP network via Communication Coupler Units. The modern remote I/O demands increasing levels of flexibility. The EtherNet/IP Communication Unit enables connection between the CJ-series or other Programmable Controller and NX-series I/O through EtherNet/IP, which expands system configuration possibilities. Modular remote I/O systems offer flexibility in I/O configuration and a wide choice of signal types and performance levels so that every I/O station can be assembled with just the right combination without changing the control architecture. By using standard Ethernet cables and connectors, only basic tools are required to install and maintain networks.

While different machines may require different levels of controller performance, NX-series is the only remote I/O system you will need. This will unify wiring and installation techniques, and simplify spare parts stock. Safety control programs that are created using the NX I/O Edition can be standardized and reused throughout the machine portfolio, which will reduce the time required for development, testing and certification

Specifications

Unit name	Transistor Output Unit	Model	NX-OD5121
Number of points	16 points	External connection terminals	Screwless clamping terminal block (16 terminals)
I/O refreshing method	Selectable Synchronous I/O refreshing or Free-Run refreshing
Indicators	TS indicator, output indicator	Internal I/O common	NPN
		Rated voltage	12 to 24 VDC
		Operating load voltage range	10.2 to 28.8 VDC
		Maximum value of load current	0.5 A/point, 4 A/Unit
		Maximum inrush current	4.0 A/point, 10 ms max.
		Leakage current	0.1 mA max.
		Residual voltage	1.5 V max.
		ON/OFF response time	0.1 ms max./0.8 ms max.
Dimensions	12 (W) x 100 (H) x 71 (D)	Isolation method	Photocoupler isolation
Insulation resistance	20 MΩ min. between isolated circuits (at 100 VDC)	Dielectric strength	510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max.
I/O power supply method	Supply from the NX bus	Current capacity of I/O power supply terminal	Without I/O power supply terminals
NX Unit power consumption	• Connected to a CPU Unit or Communication Control Unit 1.00 W max. • Connected to a Communi- cations Coupler Unit 0.65 W max.	I/O current consumption	20 mA max.
Weight	70 g max.
Circuit layout
Installation orientation and restrictions	Installation orientation: • Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions

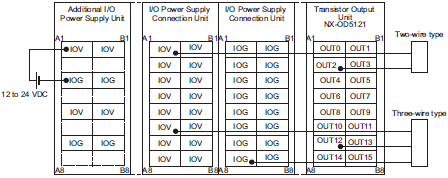

Terminal connection diagram
Disconnection/ Short-circuit detection	Not supported.	Protective function	Not supported.
